Floor Cracking Repairing
Repairing Systems R-1/ R1-1/ R-2
Bonddex® Repair & Reinforcement Systems have cover range of functions from fast setting repairing jobs to different structures, large area of finishing coat resurfacings, and membranes reinforcement jobs. All of the R series are single component and do not require any acrylic or epoxy types of primer.
Repairing Systems includings products as following:
R-1 Multi-purpose High Early Strength Repairing Mortar
R1-1 High Strength Repairing Mortar
R-2 Non-Sagging MultiRepairing mortar
‧ Open For Car Traffic In 1 hour
‧ Ready To Use
‧ Low Shrinkage
‧ Super High Early Strength
‧ Perfect Tensile & Compressive Strength
‧ Perfect Bonding Ability
‧ Flowing Value (R-1 & R1-1)
‧ Airport Runways.
‧ Bridges Expansion Joints.
‧ Mounting for Electric Line Poles.
‧ Leveling Job For Manhole Cover.
‧ Touching Up Before Doing Epoxy Layer.

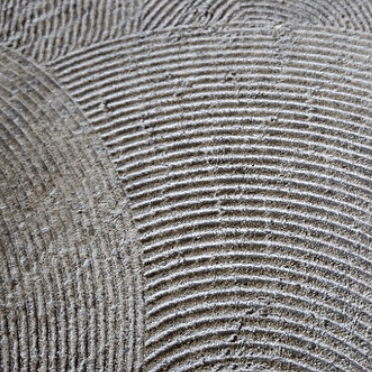

‧ Scratch Coat.

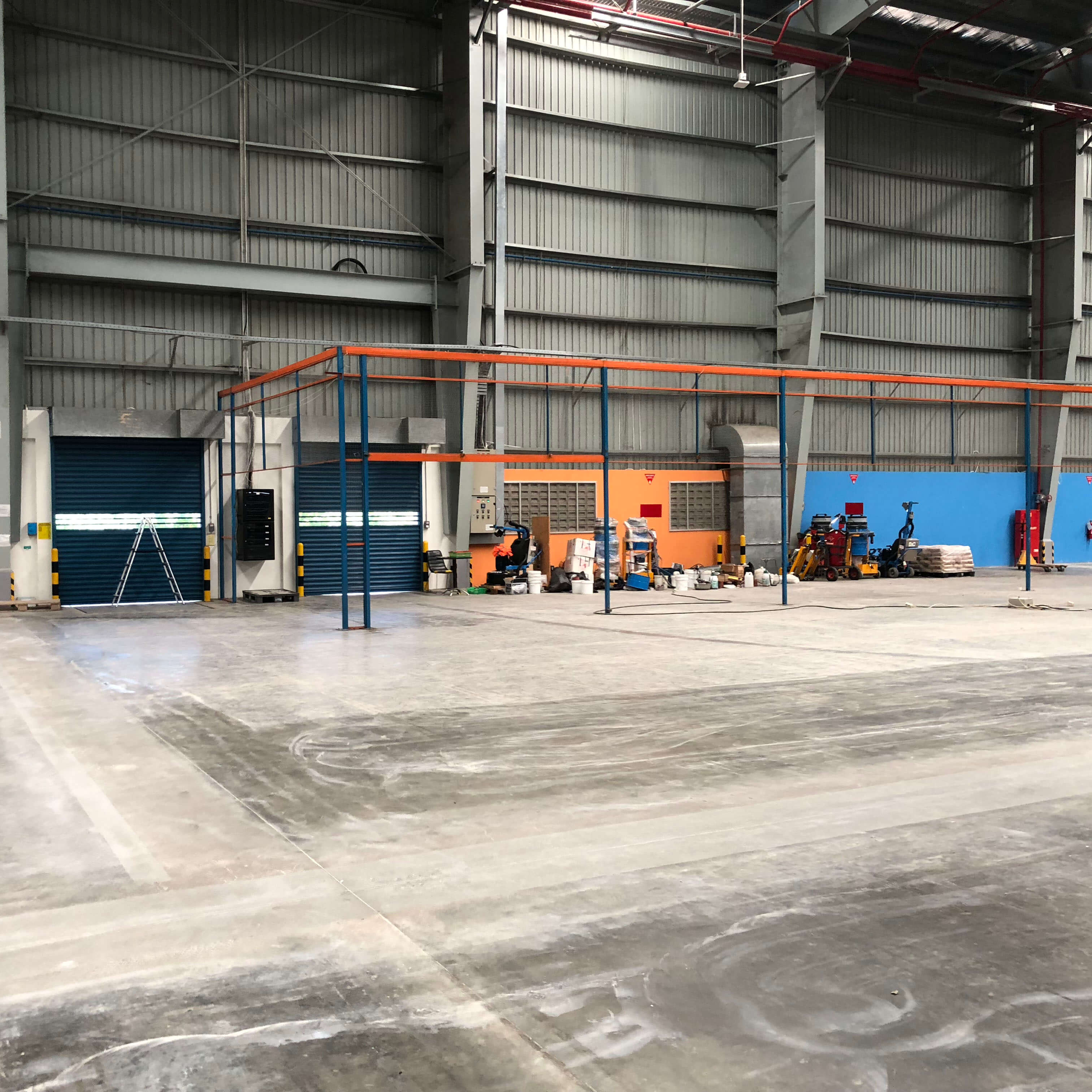

‧ Industrial floor repairing & resurfacing.
1. Clean, dust and oil free substrate.
2. Substrate needs to be Saturated-surface-dry (SSD) standard.
3. Mixing equipment requires minimum 1200V and 500rpm/min.
4. Original substrates may require to be scarified & shotblasted before installing.
5. Install Steel Reinforcements follow on the original designed specifications.
6. Follow the thickness requirements to each product's’ requirements.
7. For special circumstances, extra grading of aggregate can be mix together.
ACCESS TO JAPANESE INFORMATION:
[Sample]
- How quickly can the repaired surface be opened to traffic?
- Walkable in 1 hour at standard temperature (20 °C); vehicle traffic permitted in 2 hours. Cold-weather installations require extended cure time.
- What thickness range does this system cover?
- R-1 for 30-100mm structural sections, R1-1 for 5-30mm thin overlays, R-2 for 3-15mm fine repairs.
- Is bonding agent required?
- For surfaces older than 28 days or smooth substrates, prime with ARC-76 cement modifier before application to ensure proper bonding.
